[FR] New hotend board for mega pro ver. 0.0.3, how to connect bltouch? #183

New Issue
Closed
opened 2021-08-11 17:57:13 -05:00 by poulsp · 3 comments
poulsp commented 2021-08-11 17:57:13 -05:00 (Migrated from github.com)
Copy Link

Description

How to connect bltouch to this hotend board, any ideas?
I'm talking about the ground and signal.

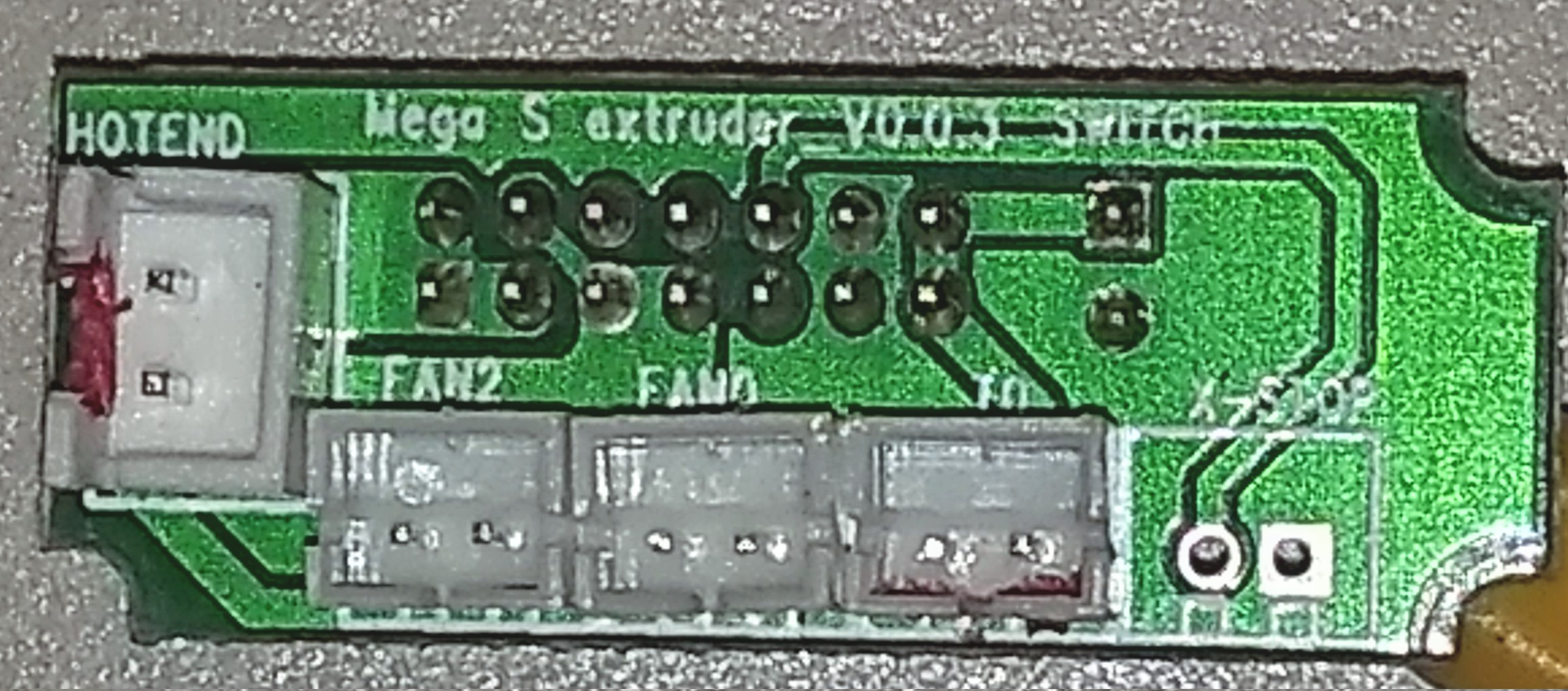

bottom

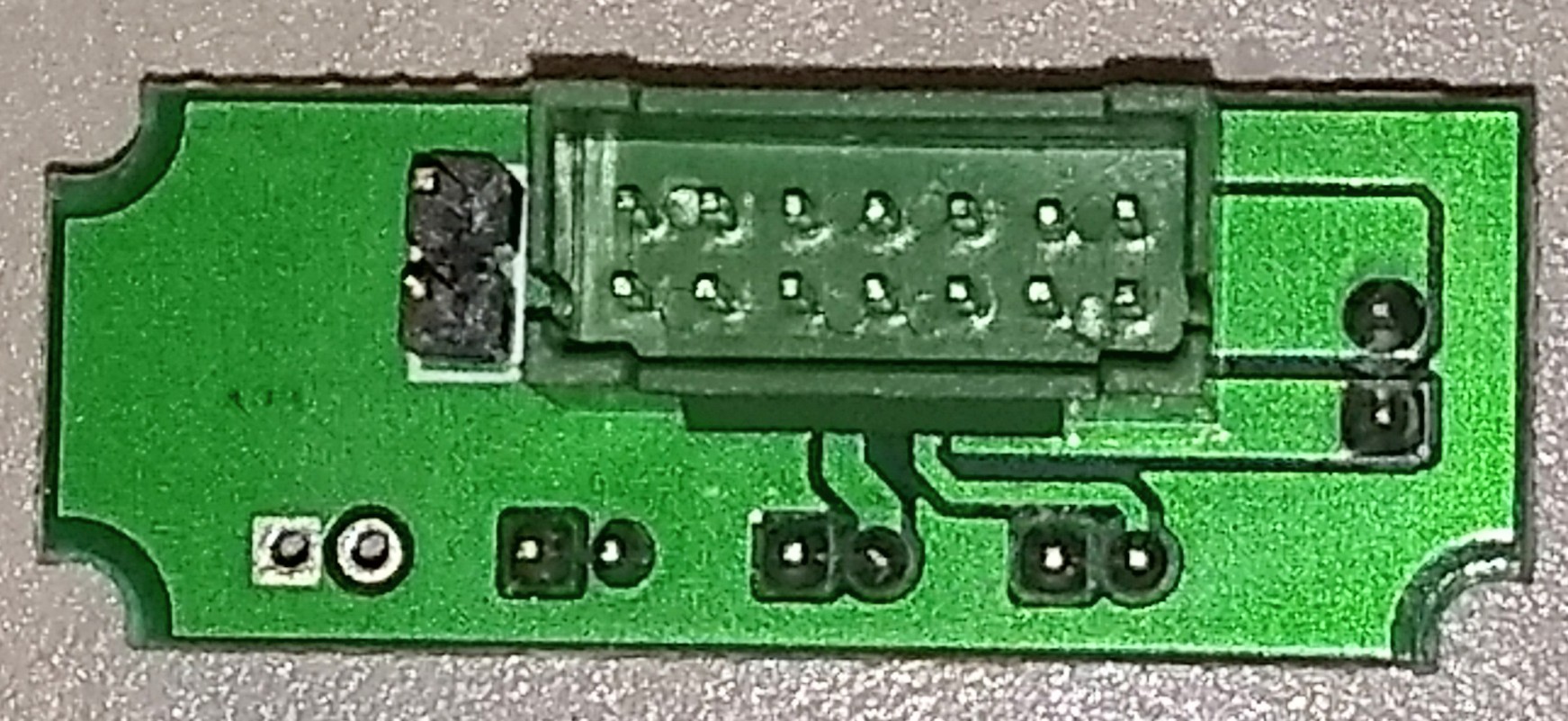

top

### Description How to connect bltouch to this hotend board, any ideas? I'm talking about the ground and signal. ![bottom](https://user-images.githubusercontent.com/4759224/129114100-788a0320-561a-41ee-bc7a-b9ec2ab6f869.jpg) ![top](https://user-images.githubusercontent.com/4759224/129114122-f07f33ed-a63c-4e57-a22e-5e580c107e64.jpg)
knutwurst commented 2021-08-16 01:14:14 -05:00 (Migrated from github.com)
Copy Link

There should be no problem following the official instructions. The pinout is the same.

There should be no problem following the official instructions. The pinout is the same.
github-actions[bot] commented 2021-09-15 21:12:01 -05:00 (Migrated from github.com)
Copy Link

This issue is stale because it has been open 30 days with no activity. Remove stale label / comment or this will be closed in 5 days.

This issue is stale because it has been open 30 days with no activity. Remove stale label / comment or this will be closed in 5 days.
github-actions[bot] commented 2021-11-21 08:12:18 -06:00 (Migrated from github.com)
Copy Link

This issue has been automatically locked since there has not been any recent activity after it was closed. Please open a new issue for related bugs.

This issue has been automatically locked since there has not been any recent activity after it was closed. Please open a new issue for related bugs.
